Vertical 6 cylinders Yuchai YC6G260N-40 LNG CNG natural gas fuel engine assembly is widely used for heavy duty highway trucks.Here is the details of this engine and maintenance parts.
I:Yuchai YC6G260N-40 LNG CNG natural gas engine assembly specification:
| Type | Vertical,in-line six-cylinder,water-cooled,four-stroke | |
| Bore × stroke | 112*132(mm) | |
| Piston displacement | 7.8 L | |
| MAX power | 191kw | |
| Rated Rotating speed | 2300r/min | |
| Max Torque / Rotating speed | 980N.m/1200-1600r/min | |
| Lowest gas consumption at full load | ≤210 (g /kW·h) | |
| Fuel Type | LNG/CNG | |
| Noise (ISO3744) |
≤93 dB(A) |
|
| Net Weight | 700 KG | |
| Application | 7-14 tons heavy duty highway trucks,Municipal machinery | |
II:Nearly all maintenance parts for this Yuchai YC6G260N-40 engine:

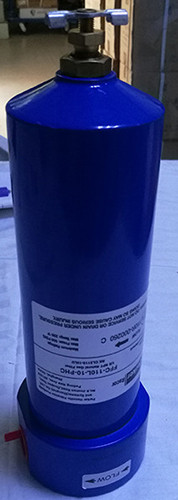

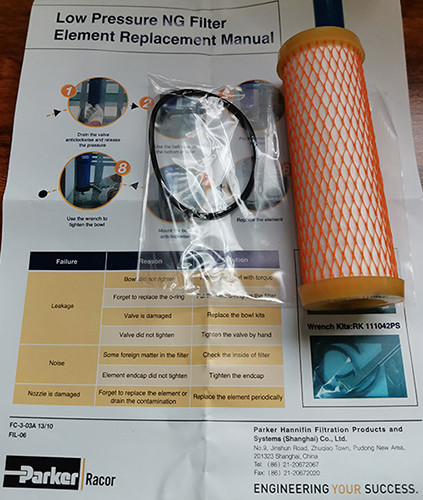

1.Natural gas filter J5700-1107200A assembly,same with Parker Racor FFC-110L-10-PHC low pressure gas filter,inner replacement gas filter element is RK CLS110-10LU.
2.Waste gas bypass control valve：LN100-1118940.
3.LNG CNG natural gas fuel injector nozzle Yuchai K1A00-1113940 same with Nikki 29b001-832/29B001T-832.

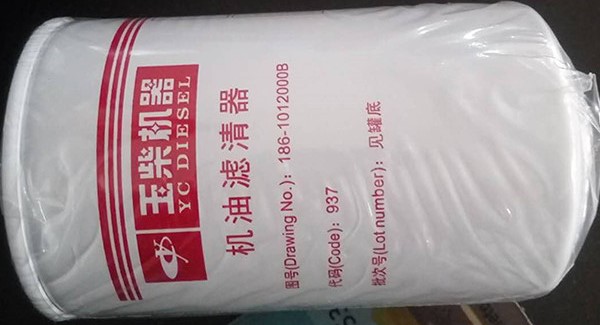

4.Lube oil filter Yuchai 186-1012000B,new part no. of this is 186-1012240.
5.Oil cooler G601C-1013100

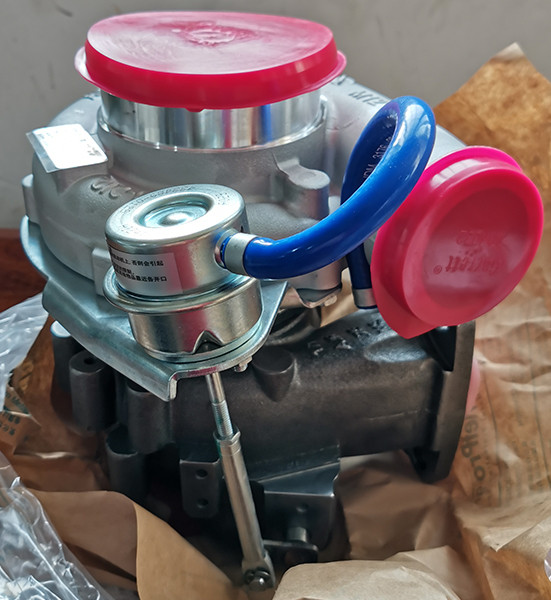

6.Yuchai G3R00-1118100-135 TBP4 supercharger turbocharger
7.Ignition coil Yuchai K1A00-3705061A
8.Bosch 0280750151 electronic throttle body valve
9.Bosch 0281002576 gas intake pressure temperature sensor
10.24V 6KW engine starter motor Yuchai G5800-3708100G-002
11.ECU G3SYAE00957
12.Engine control wire harness Yuchai D4500-3823262
13.Yuchai J5700-3823140A gas intake pressure temperature sensor,same with Yutong 3611-00445 sensor.

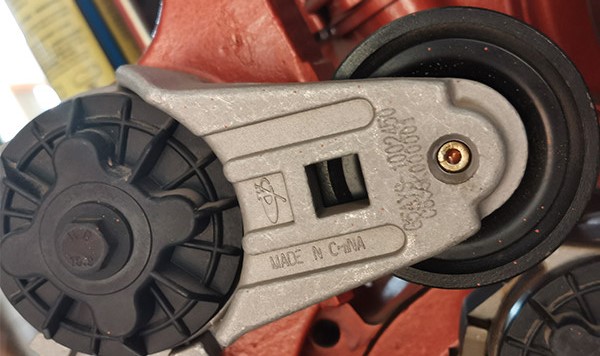

14.Yuchai G5AYS-1002450 belt Tensioner
15.Yuchai J63YF-1002460 belt tensioner idler
