Multifunction Vacuum transformer GAS turbine hydraulic oil Purifier filter Machine specification:

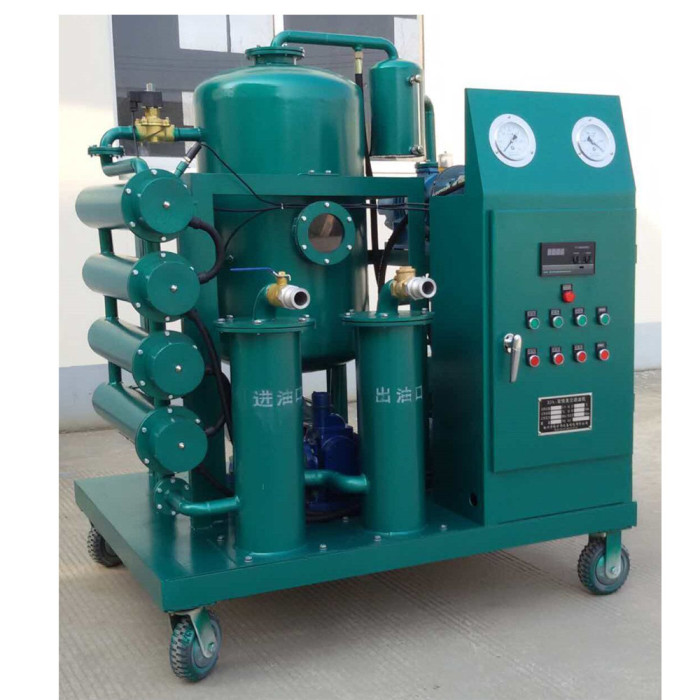

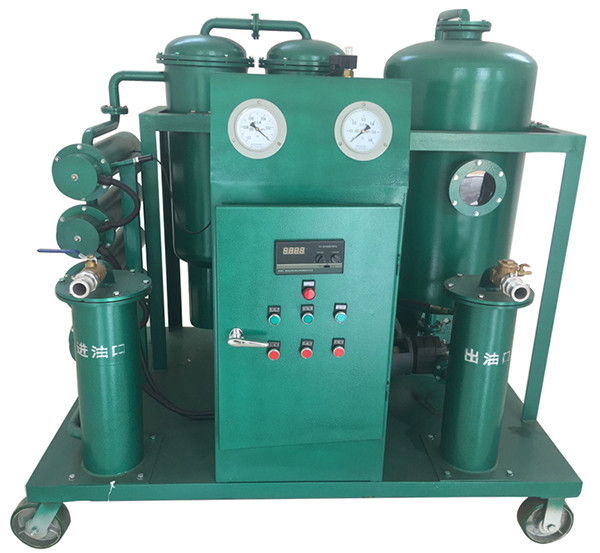

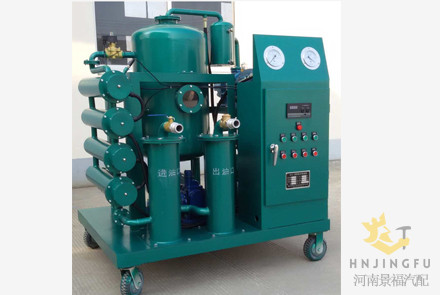

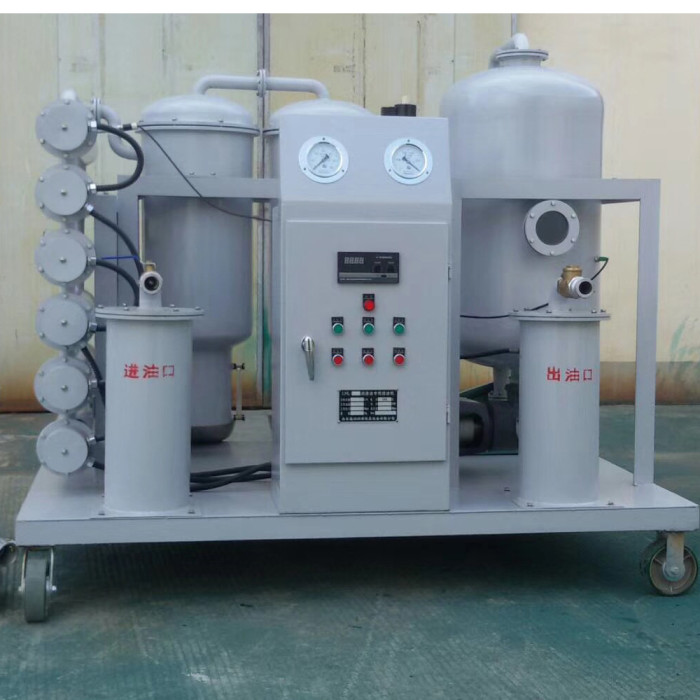

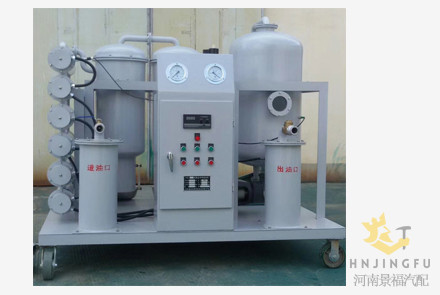

Oil filter machine Pictures: Application: Packing details Factory photo Inquiry
| Datasheet | Model | JDZJ-30 | JDZJ-50 | JDZJ-75 | JDZJ-100 | JDZJ-125 | JDZJ-150 | JDZJ-200 |
| working capabilities | Flow(L/Min) | 30 | 50 | 75 | 100 | 125 | 150 | 200 |
| Breakdown voltage(kv) | ≥60 | ≥70 | ≥80 | |||||
| Vacuum degree | Maxmium(Mpa) | ≤0.098 | ||||||
| Working(Mpa) | 0.07-0.085 | |||||||
| Working Pressure(Mpa) | ≤0.35 | |||||||
| Working Noise(db) | ≤70 | ≤75 | ||||||
| Water Content(mg/kg) | ≤3 | |||||||
| Gas Content(%) | ≤0.1 | |||||||
| Cleanliness NAS | 6 class | |||||||
| B | ≥6 | |||||||
| Filtration accuracy | 3-5 Micron | |||||||
| Electric Heating Power(kw) | 18 | 28 | 38 | 54 | 75 | 90 | 110 | |
| Total Power(kw) | 20 | 32 | 40 | 58 | 90 | 110 | 125 | |
| Voltage | 380v | |||||||
| Inlet and Outlet Diameter(mm) | 25 | 32 | 38 | 50 | 50 | |||
| Oil temperature range(℃) | 40-60℃ | |||||||
| Trouble free working time(h) | h≥5000 | |||||||
| Continuous working time(h) | h≥150 | |||||||
| Oil Purifier Machine Weight(Kg) | 150 | 350 | 420 | 480 | 540 | 600 | 680 | |
| Processed oil characteristics | Gas content≤12,Water content≤50mg/kg,Breakdown voltage≥25kv | |||||||
1. This machine can be used for all kinds of oil-immersed transformers, oil-immersed currents, voltage transformers and low-oil-content circuit breakers,for on-site oil filteration and oil replenishment.
2. This machine can be used for on-site hot oil circulation drying of the above equipment, especially for hot oil circulation drying of oil immersed current, voltage transformer and low-oil-content circuit breakers,more effective
3. This machine can be used for on-site vacuum oil filling and oil replenishment and equipment vacuum for sealed oil immersing equipment.
4. It’s also avaliable to regenerate and purify for mildly deteriorated transformer oil ,and make it qualified standard oil.
Oil purifier purification machine Packing:Wooden box.
Any interest,welcome to contact (admin1@hnjingfu.com)for more details.
