High efficiency Double stage Multifunction 100L per Min flow Vacuum water Machine oil filter Purifier specification:
JHMSJ series Double Stage high efficiency vacuum oil purifier is an oil purification device designed with the characteristics of Moisture low temperature evaporation under vacuum condition. The machine is equipped with two high-precision filter elements which has high dirt holding volume, and can remove mechanical impurities larger than 1 micron to make the insulating property of the insulating oil reaches a high compressive strength. The oil's insulation performance achieves high compressive strength. This model is especially suitable for insulating oil treatment of 5 million volts and less than 5 million volts.

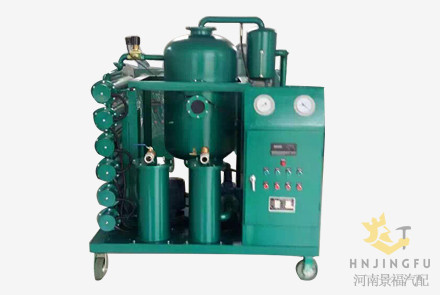

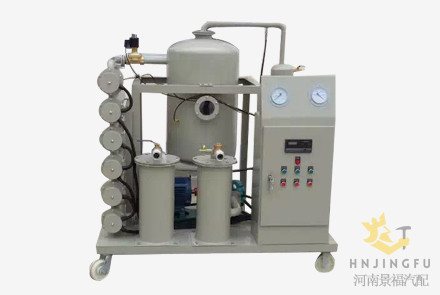

Oil filter machine Pictures: Why Choose us? Packing details Factory photo Inquiry
| Datasheet | Model | JHMSJ-100 |
| Working capabilities | Flow(L/Min) | 100 |
| Breakdown voltage(kv) | ≥60 | |
| Working Vacuum degree (Mpa) | -0.09-0.099 | |
| Working Pressure(Mpa) | ≤0.4 | |
| Working Noise(db) | ≤75 | |
| Water Content(mg/kg) | 5-10 | |
| Gas Content(%) | ≤0.5 | |
| Constant temperature control range(℃) | 20-80 | |
| Power | 380V | |
| Filtration accuracy | ≤5 Micron | |
| Electric Heating Power(kw) | 48 | |
| Total Power(kw) | 52 | |
| Inlet and Outlet Diameter(mm) | 38 | |
| Size:L*W*H(mm) | 1500*1000*1500 | |
| Oil Purifier Machine Weight(Kg) | 500 | |
1. Adopting large pumping speed and advanced dehydration and degassing system, the volatilization area is very large, and the effect of degassing and dehydration is highly improved.
2. Double-cylinder independent vacuum pumping, with two pre-stage vacuum pumps and one booster pump, the pumping speed is fast, thus achieving the true high vacuum requirement.
3. It is equipped with photoelectric control automatic defoaming device to prevent oil foam from entering the vacuum system.
4. There is a filter pollution alarm, When the filter element is fully sucked, the whole machine will automatically stop running, and alarm that the filter element need to be replaced promptly.
5. The heating system adopts a constant temperature digital display controller, which can display the temperature intuitively, and is equipped with an oil-deficient protection device to prevent the fire hazard caused by the dry burning of the heater.
Oil purifier purification machine Packing:Wooden box.
