50L flow per minute Plate and Frame type oil filter press machine

50L flow per minute Plate and Frame type oil filter press machine  specification:

JLJG series frame oil filter is mainly designed for the power plants, power stations, industrial and mining enterprises, lubricants warehouse, tractor stations, petroleum, chemical industry, metallurgy, national defense units, it mainly used to purify transformer oil, turbine oil, engine oil, diesel, kerosene, aviation hydraulic oil, oil in the water and impurities and also use stainless steel as a vegetable oil filter.

Oil filter machine Pictures:       Why Choose us?      Packing details      Factory photo   Inquiry



Model    JLJG-50
Flow Rate(L/Min)     50
Filtration Area(m²)     0.7
Working Pressure(Mpa)      2.5*105
Maximum Working Pressure(Mpa)     5.88*105
Oil viscosity(Cst)     ≤33
Filtration accuracy(μm)    ≤20
Quantity of Filter frame    8
Quantity of Filter board    9
Filter Paper size(mm)    234*234
Motor Power(KW)    1.1
Inlet Diameter(Inch)      1
Outlet Diameter(Inch)      3/4
Machine Size:L*W*H(mm)    850*480*650
Oil Purifier Machine Weight(Kg)    126

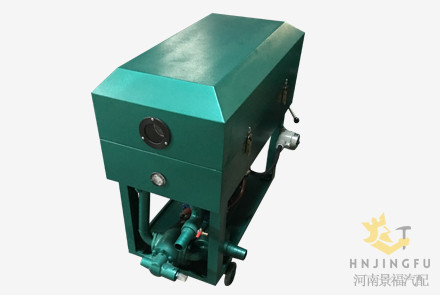

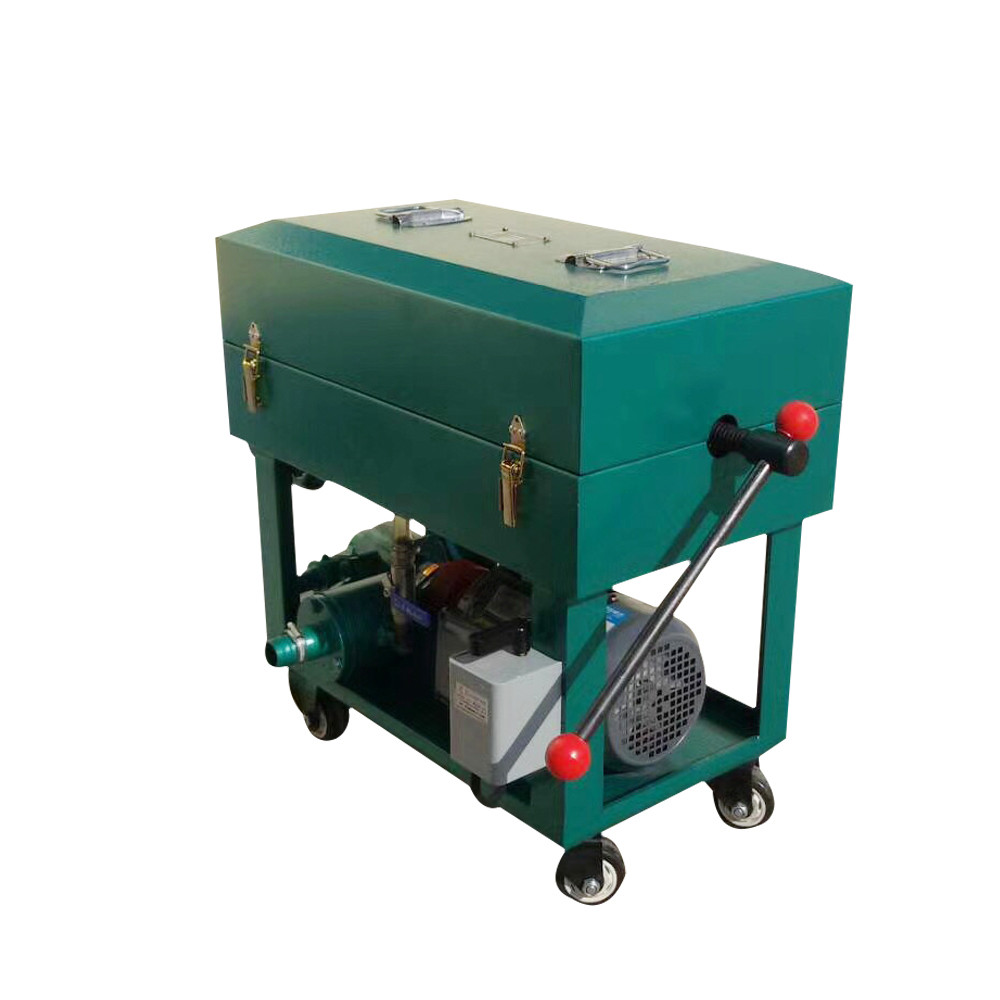

 Oil filter machine Pictures:

  Frame Pressure oil filter 1

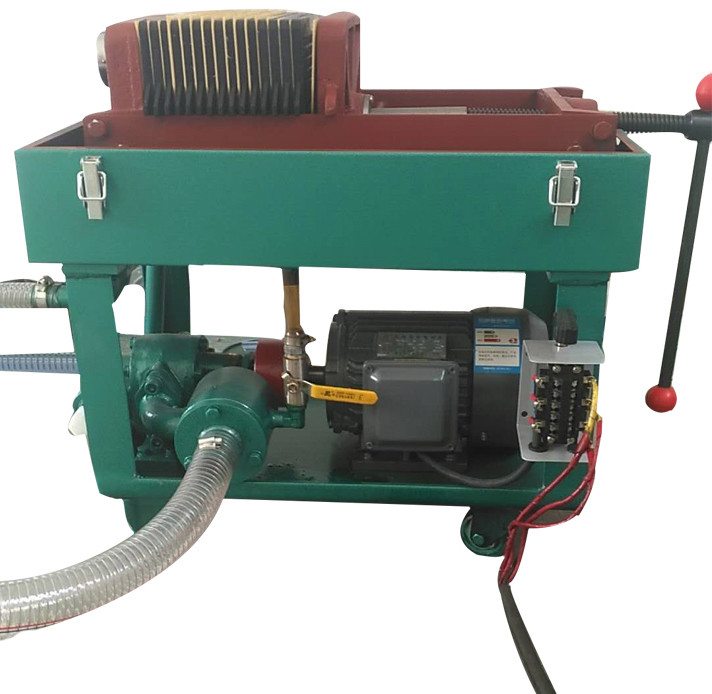

  plate and Frame Press oil filter machine

Why choose us?:

1. Fast and easy replacement of the filter paper.
2. Simple structure, easy to operate.
3. Low running costs.

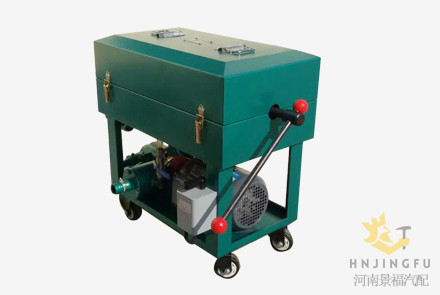

Vacuum oil Purifier Machine details

Vacuum oil Purifier Machine 1

Oil purifier purification machine Packing:Wooden box.

Vacuum oil Purifier Machine packing

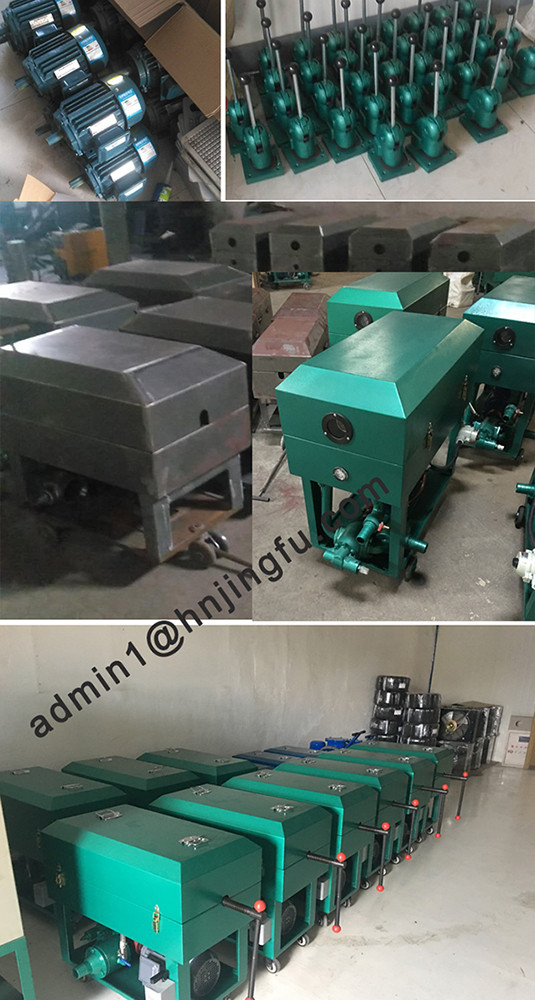

Factory Production details:

 Frame pressure oil filter factory 2

Vacuum oil Purifier filter filtering filtration system Machine factory supplier

Any interest,welcome to contact (admin1@hnjingfu.com)for more details.
