50 LPM 3000 LPH flow Vacuum insulation insulating oil treatment purifier filtering filtration machine equipment specification:
This JDYG series machine is mainly used for insulating dielectric oil purification filter filtering treatment of 220kv and below power transmission and transformation equipment,can remove oil pollutants such as water,gas and mini micron impurity effectively,improve withstand voltage ability and quality of oil,ensure the safe operation of the equipment.
Therefore,It's widely applicated in electrical manufacturing factory,power plant,power supply bureau,railway transformer station,power transmission and substation construction department,usd for insulating oil purification treatment of transformers,power capacitor,high voltage switch and pipe insulation etc.,also for vacuum oil filling and hot oil circulation drying of high-voltage electrical equipment.

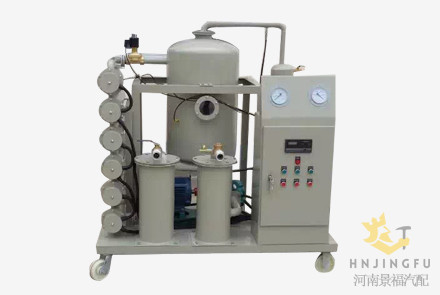

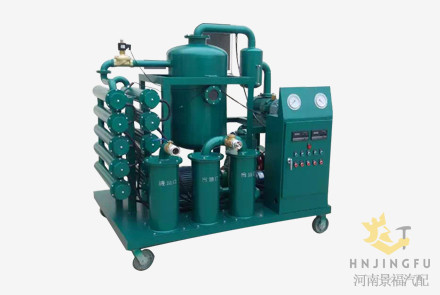

Oil filter machine Pictures: Why Choose us? Packing details Factory photo Inquiry
| Model | JDYG-20 | JDYG-30 | JDYG-50 |
| Other model avaliable | 100,150,200,300 LPM/6000,9000,12000,18000 LPH | ||
| Flow(L/Min) | 20 | 30 | 50 |
| Electric Heating Power(kw) | 15 | 22 | 30 |
| Total Power(kw) | 18 | 26 | 35 |
| Inlet and Outlet diameters |
DN25 |
DN32 | |
| Breakdown voltage(kv) | ≥60 | ||
| Working Vacuum degree (Mpa) | -0.06- -0.099 | ||
| Working Pressure(Mpa) | ≤0.4 | ||
| Working Noise(db) | ≤70 | ≤75 | |
| Water Content(PPM) | ≤5 | ||
| Gas Content(%) | ≤0.1 | ||
| Constant temperature control range(℃) | 20-80 | ||
| Cleanliness(NAS) | ≤6 | ||
| Color degree | ≥3 | ||
| Power | 380V50Hz/Three phase four wire,or according to your requirement | ||
| Filtration accuracy | ≤3 Micron | ||
| Average trouble free working time | H≥5000 | ||
1. With three class filters and nano molecular adsorption technology,encryption level filteration one by one,ensure the filtering precision.
2. Advanced dehydration and degassing of a three-diemensional flash technology,remove moisture, impurities, hydrocarbons and other harmful ingredients in oil rapidly and efficiently.
3. The use of safe and reliable aircraft/aviation material and far infrared heating system,optimization design of pipeline,to ensure oil heating uniformly,to ensure that no"dead oil" and avoid oil carbonization.
4. Digital display of intelligent temperature control instrument,overcomes the defects of traditional only one heating pointer type temperature controller,heating point can be arbitratily set upper and lower between 20 and 80 degree,display instant temperature oil more intuitively.
5. In addition to having dehydration,degassing,cleaning function of general vacuum oil filter machine,but also having oil regeneration function of poor quality oil,removing deep oxides in oil,limiting substance of F.C (free carbon),and recovering oil oxidation resistance and acid-base water solubility of poor quality oil.
Oil purifier purification machine Packing:Wooden box.
Any interest,welcome to contact (admin1@hnjingfu.com)for more details.
