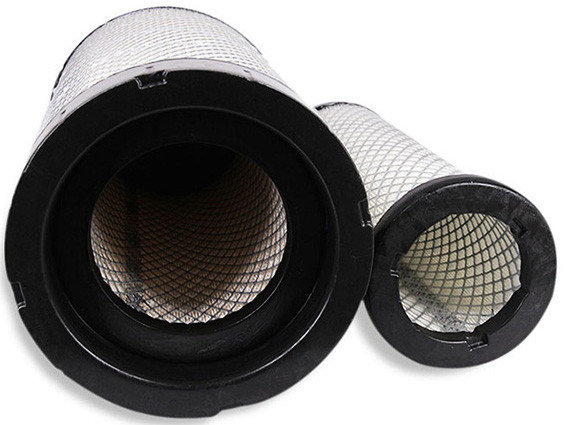

Fleetguard AA90138 AF26531 AF26532 air filter for Kinglong bus specification:
OEM No:Fleetguard AA90138,AF26531,AF26532;PU2238.
Application:bus;Kinglong,King long bus.
Fleetguard Part no. | aa90138 |
Part type | air filter |
Filter Element NO. | af26531,af26532 |
Main air filter Size | ID1 Φ 124.3MM |
ID2 Φ 0MM | |
OD1 Φ 223.8MM | |
OD2 Φ 223.5MM | |
Overall Height 379.5MM | |
Safety filter size | ID1 Φ 91.6MM |
ID2 Φ 0MM | |
OD1 Φ 184.6MM | |
OD2 Φ 122.3MM | |
Overall Height 360.8MM | |
Media Material | Color fiber filter paper |
Original resistance | ≤2.5kpa |
Alarm Pressure | 6-6.5kpa |
Original filtration effiency | ≥99.5% |
Full life filtration Effiencey | 99.7%-99.9% |
Dust holding Capacity | usually 5-15kg |
Life Span | 15,000 kms-25,000 kms |
