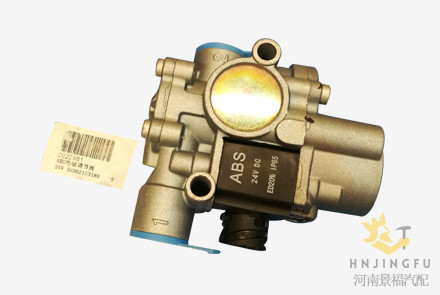

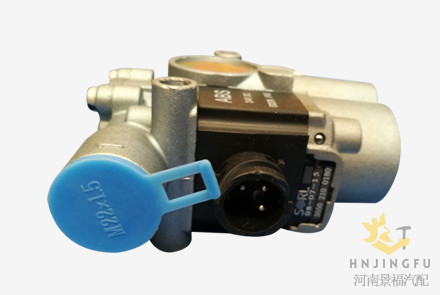

Sorl parts 35502100180/4721950180 air brake valve 24V ABS solenoid electro magnetic modulator valve specification:
Yutong No.:Sorl 35502100180
OEM no.:4721950180,2209208,41027224,1079666,1376793,1504901.
| Medium | Air |
| Rated voltage | 24V |
| Rated current | ≤1.65A |
| Duty cycle | 20%/ 5min |
| Working pressure | Max 10bar |
| Operation temperature | -40 -- +80℃ |
| Port | M22×1.5 |
| Normal temperature tightness | ≤15KPA(under rated working pressure) |
| Low temperature sealing | ≤30KPA(-40℃) (under rated working pressure) |
| High temperature sealing | ≤15KPA(80℃) (under rated working pressure) |
| Boost delay time | ≤14 ms |
| Decompression delay time | ≤14 ms |
